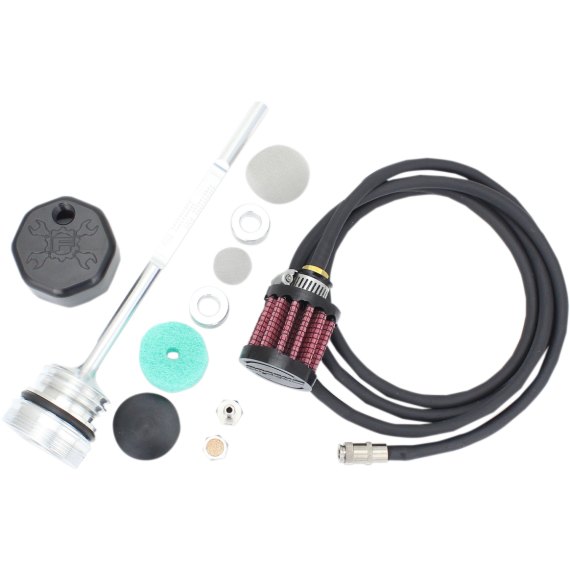

Vented Dipstick - Black - Touring 3088
This breathing dipstick removes unwanted build-up of blow by, which is found in engines with excessive leakdown through the rings/cylinders which is a common issue with large displacement big bore engines
$299.95
USD
SKU
0710-0260
Manufacturer:
Feuling Oil Pump Corp
- Screws into the factory oil fill spout as a stock replacement part on M-Eight baggers
- This breathing dipstick removes unwanted build-up of blow by, which is found in engines with excessive leakdown through the rings/cylinders which is a common issue with large displacement big bore engines
- Test results show a decrease in engine sump oil levels
- Two venting style options are available when installing dipstick
- Dipstick vents excessive pressure from the oil tank through a breather system consisting of a filter element and umbrella valve
- There are two ways to read the oil level with this dipstick, with the bike on the jiffy stand (FHS) or the bike upright and level (FHU)
- If reading the dipstick with the bike on the jiffy stand you will take your reading from the dimples labeled FHS (Full Hot Stand)
- When reading the dipstick with the bike upright and level you will take the reading from the dimples labeled FHU (Full Hot Upright)
- Made in the U.S.A.
- Two venting style options when installing dipstick: 1) Use the 1/8 NPT breather vent fitting with internal porous filter element (this option gives a clean look; however it can produce an oil misting/residue out of the element on engines with excessive leakdown/blow by). 2) Use quick-disconnect coupler fitting with rubber hose and filter element (this option will run any excessive oil misting/residue through the line and into the filter element, but does requires disconnecting the fitting in order to check the oil). For option 2, we recommend routing the line up the frame rail, up under the seat/abs area then back down along the right side frame rail and the filter element can fit cleanly between the engine/trans matting area on the inside of the lower right frame rail.
- The oil pick-up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank.
| Manufacturer SKU | 3088 |
|---|---|
| Manufacturer: | Feuling Oil Pump Corp |
| Department | PAM-PU |
| HTP Sale | No |
| Show Stock | Yes |
| Riding Style | Street |
| California Restricted Product: | Yes |
| Color | Black |
