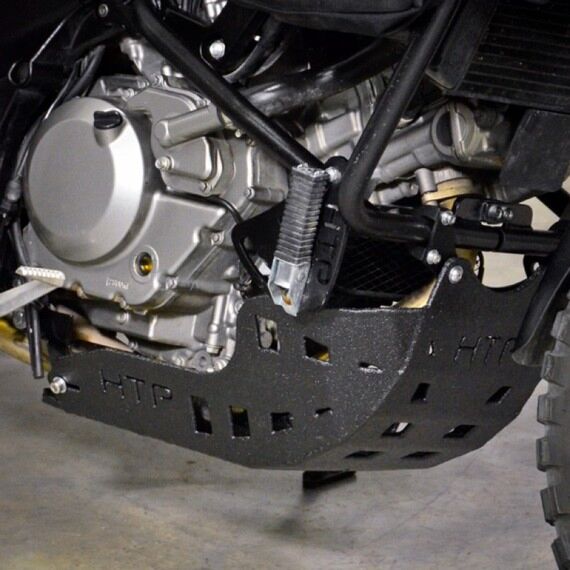

Happy Trails DL1000 2014+<br>V-Strom Skid Plate

Designed for the V-Strom 1000 2014+ to give critical protection for all key components at front, sides, and bottom of the motor.

Color: Hammertone Black

Special Price $199.95 Regular Price $269.95
SKU
HTP7-5-88-XX14

The selections below allow you to purchase a skid plate alone (you already have the required mount), a skid plate with a required mount kit (separate selection), or just a mount kit (you already have the skid plate).

You must make your selections: one for each dropdown box in order to add the item(s) to the cart.

The new V-Strom 1000 is a very capable adventure mount, but one look at the front of the engine and you can see why a quality skid plate is such an important addition. Right out there in the open just waiting to be dented or punctured by a mischievous rock or branch are the oil filter, exhaust and starter with the engine cases not far behind.

Our Happy Trails Products skid plate is designed specifically to fit the new V-Strom 1000. We use adventure proven 3/16 inch aluminum to provide critical protection for all key components at the front, sides, and of course bottom of the motor. All of our HTP skid plates are CNC cut, bent, and hand-welded at our factory in Boise, Idaho black powder coat.
Features:

  • Custom fitted specifically for the new V-Strom 1000

  • Compatible with OEM crash bars, GIVI Engine Guards as well as Happy Trails Nerf Engine Guards.

  • 3/16" aluminum plate which is 100% welded for maximum strength, not riveted together like some competitors

  • Designed to help protect all the critical areas of the oil system, engine, and exhaust

  • Strategically placed vent holes for air flow to the oil cooler and lower engine while maintaining strength and protection

  • Four mounting points for secure attachment. (2 frame, 2 crash bars)

  • Skid Plate and center-stand are compatible
  •  Black Hammertone powder coat finish is standard.

Fitment Note: Our skid plate requires the use of either OEM or our crash bars/engine guards for the front mount points.

Included: Skid plate (if selected). Hardware mount kit (if selected) contains front and rear mount brackets, all necessary nuts and bolts, and installation instructions The complete solution is the skid plate and mounting kit.

Weight: Mounting Brackets 3.2 lbs., Skid Plate 5.9 lbs.
Dimensions: Skid Plate: 19.5"L x 15"W x 9.5"H

All Happy Trails products are crafted in Idaho

    INSTRUCTIONS


Write Your Own Review
You're reviewing:Happy Trails DL1000 2014+<br>V-Strom Skid Plate

Product Faqs

Ask a Question




Ask a Question


Sort by
  • Will these fit the heed bars? https://heedshop.eu/en_US/p/Crash-bars-with-Bags-for-Suzuki-DL-1000-V-STROM-2017-now/426
    Question by: John on 2019-02-25 22:14:00

    We are not sure.

    Answer by: Tim on 2019-02-25 17:14:00
  • Your description says newer model but seems to show the first generation vstrom in the pictures. Will this fit a 2004 dl1000. I already have your crash bars.
    Question by: Nathan on 2018-01-02 18:28:00

    Yes it will fit the 04 DL 1000, We don't have it listed due the plastic deflector you have to remove and our instructions don't cover that.

    Answer by: Tim on 2018-01-02 13:28:00
  • Will this skid plate support the weight of the bike?
    Question by: scott on 2017-12-28 01:18:00

    Our skid plate will support the weight of the bike if you are using the skid plate as a lift point.

    Answer by: Tim on 2017-12-27 20:18:00
  • Will this work with sw motec engine guards
    Question by: Jeff on 2017-10-21 01:33:00

    Website has been updated to show the part you need.

    Answer by: Tim on 2017-10-20 21:33:00
  • Does this skid plate need to be removed for oil change?
    Question by: jim on 2017-10-06 04:35:00

    Some people loosen the front clamps and then remove the rear bolts. This lets it swing down.

    Answer by: Tim on 2017-10-06 00:35:00
  • please send image of skid plate with highway pegs for 2014 Vstrom 1000 adventure
    Question by: jerry lee on 2017-02-22 23:07:00

    We don't have that picture for that bike. If you want to purchase one and have any issues we can work with and do a return if needed.

    Tim

    Answer by: Tim on 2017-02-22 18:07:00
