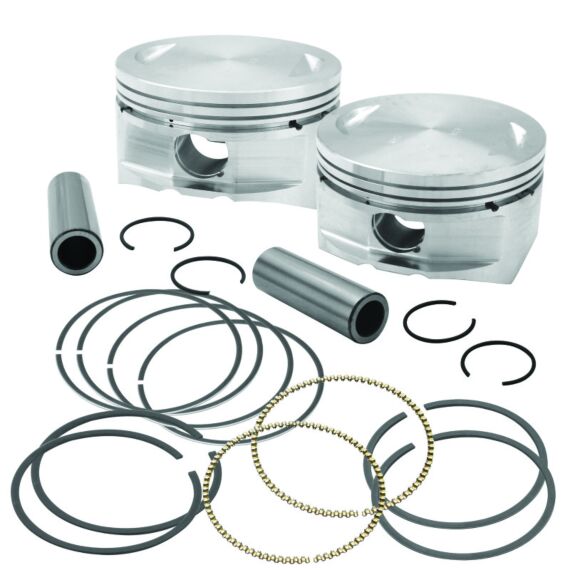

S&S Cycle 2007+ BT 3.927in +.010in Bore 106in Big Bore Forged Pistons - 106-4416
SSC Cylinder & Piston Kits by S&S Cycle
- Category: Engine Components.
- Type: Piston Sets - Powersports.
$514.95
USD
SKU
ssc106-4416
Manufacturer:
S&S Cycle
SSC Cylinder & Piston Kits
These big bore pistons work with the stock 4-3/8" stroke flywheels to convert any 2007-'16 HD® big twin engine from 96" or 103" to 106" displacement with 10:1 compression with stock heads. Stock cylinders may be bored to accomodate larger pistons, but we recommend S&S 3.927" bore cylinders which feature high strength alloyed cast iron liners. Pistons are compatible with stock rods with tapered wristpin ends. S&S® 3.927" bore pistons are machined to such close tolerances that it is not necessary to measure the piston. Just bore cylinders to nominal diameter +/- 0.0005" for correct clearance. Additionally, the low friction coating on the piston skirt makes taking measurements very difficult. 3.927" .010" bore.
Key Features
Brand
Manufactured by S&S Cycle
Manufactured by S&S Cycle
Category
Engine Components
Engine Components
Type
Piston Sets - Powersports
Piston Sets - Powersports
Specifications
Length
8.5 in
8.5 in
Width
4.5 in
4.5 in
Height
4 in
4 in
Weight
2.7 lbs
2.7 lbs
Rider Benefits
These big bore pistons work with the stock 4-3/8" stroke flywheels to convert any 2007-'16 HD® big twin engine from 96" or 103" to 106" displacement with 10:1 compression with stock heads. Stock cylinders may be bored to accomodate larger pistons, but we recommend S&S 3.927" bore cylinders which feature high strength alloyed cast iron liners. Pistons are compatible with stock rods with tapered wristpin ends. S&S® 3.927" bore pistons are machined to such close tolerances that it is not necessary to measure the piston. Just bore cylinders to nominal diameter +/- 0.0005" for correct clearance. Additionally, the low friction coating on the piston skirt makes taking measurements very difficult. 3.927" .010" bore.
Please review manufacturer details to ensure proper fitment before ordering.
| Manufacturer SKU | 106-4416 |
|---|---|
| Manufacturer: | S&S Cycle |
| Department | PAM-T14 |
| HTP Sale | No |
| Show Stock | Yes |
| California Restricted Product: | No |
