lifetime—click for an article that might just save your life! Summary: Light Emitting Diodes (LEDs)
illuminate 200 milliseconds faster than incandescent bulbs. For a motor vehicle this means a faster braking distance response time, about a
full car length of extra stopping distance at 65 MPH.

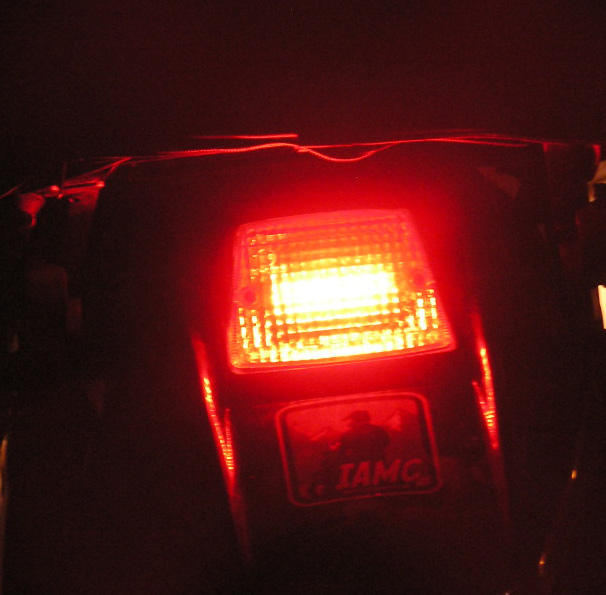

Don't be deceived by its looks. It may be a bit homely but this ugly duckling is a superstar. The exclusive Happy Trails WOW LED Taillight System transforms your KLR650 to the safest bike on the block.
It is routinely blinding: during testing staff members grew accustomed to being temporarily blinded (like looking at a camera flash). We kid you not! Both lights are brilliant, both the taillight and the brake light are exponentially improved to a startling degree.
The light installs in seconds: unscrew the stock bulb screw in the adapter unit; the board mounts securely underneath the taillight lens cover.
The WOW LED taillight system uses less power, is far brighter (both tail and
brake), and is rated to last over 100,000 hours with no signal degradation.
Fitment: fits all Kawasaki KLR650 (A or E series); customers report it also works in the KLX250s.
Power usage comparison (14VDC engine running):

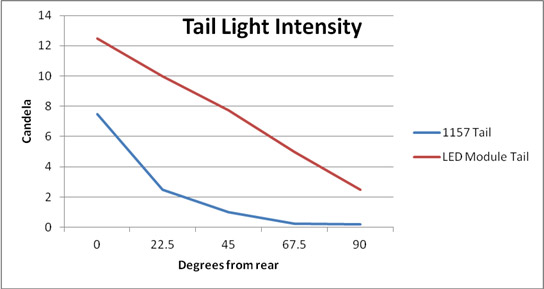

Taillight: Stock 1157: 5 Watts vs WOW LED GEN II: 0.1 Amps/1.4 Watts 10 Candela taillight

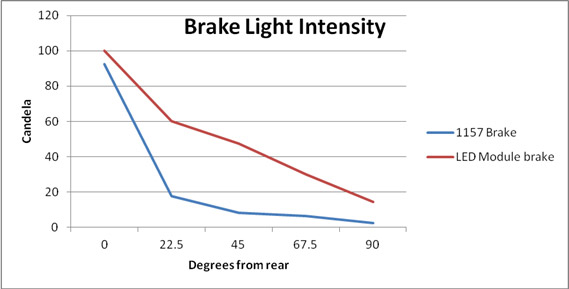

Brake Light: Stock 1157: 21 Watts vs WOW LED GEN II: .7 Amps/10 Watts 100 Candela brake light
(Light brightness testing carried out using a Minolta T-10 light meter at 1 foot).
Flash Pattern: The brake light comes with a built-in dip switch toggle
to activate a 1.5-2 second (4 flash) alert flashing before a brilliant steady
brake beam or a brilliant steady beam (without flashes).
Notes: Full brightness is not realized unless the bike is running and producing the full normal 14V. To disable the flashing mode slide both switches to the
"off" position (switches are tiny toggles on the circuit board.) If your installation causes a small gap between the tail-light lens and gasket, remove a small amount ( about 1/16") of material from the taillight mounting posts with a small file or rotary tool. This will let the lens seal tight and keep water out.
The brake light circuit on the WOW taillight requires an active and working taillight to function. Consequently, if you have a headlight cut-off switch that also eliminates the taillight the brake light will not work. Also, the WOW taillight cannot be bench-tested. It must be installed so that both the tail and brake light circuits are active.
Dimensions: The light is about 1 1/4" deep, from the top of the mounting posts to the back side of the circuit board. The circuit board is 1 5/8" wide, and 2 5/8" wide. The maximum width on the installation holes is 3 1/4 while the minimum width is 2 7/8".
This light is also compatible with the KLX250S
Additional Technical Details: on
Happy Trails' Wiki
All Happy Trails products are crafted in Idaho
